Functions
This equipment integrates automatic carton forming, automatic material sorting, packing, and closing functions. Case forming utilizes a horizontal box-opening mechanism, with the formed case undergoing a 90-degree rotation before transferring to the conveyor line. Prior to packing and closing, a camera vision system inspects the packing quality to ensure compliance rates, followed by final closing.
Features
Compatible with multiple materials
Steel frame construction
Supports multi-SKU
Easy maintenance
Stepless speed adjustment
Rapid changeover
Applicable to: Automatic sorting and packing of various bottled products into cases
Technical Specs
Parameter | Value |
Model | M30 |
Infeed Processing Speed | 130ppm@50~1000ml |
Output Speed | 16 carton/min. |
Air Supply Pressure | Air Supply Pressure |
Power Supply | 220V/380V, 50-60Hz |
Case Size Range | 200mm-550mm (L) 150mm-350mm (W) 120mm-350mm (H) |

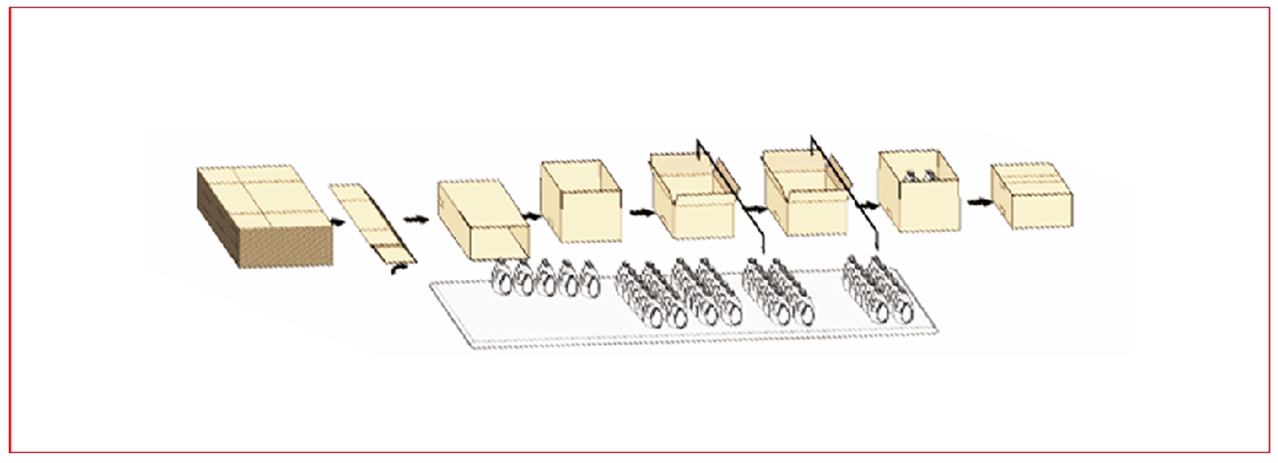

Process Flow Diagram
