Functions
This equipment features automatic material sorting, automatic paper sheet forming, automatic material positioning, robotic arm automatic case loading, and automatic case sealing. It also incorporates inspection units capable of automatically scanning carton and product barcodes, detecting product presence, and forming a closed-loop system with the rejection mechanism to promptly identify defective products.
Features
High forming speed
In-line material replenishment
Rapid changeovers for production switching
Easy maintenance
Multi-version operating systems
Stepless speed adjustment
Technical Specs
Parameter | Value |
Model | MW15 |
Sealing Type | Hot melt adhesive |
Loading Speed | ≤18 cases/min. |
Air Supply | 6 bar |
Applicable Case Dimensions | 200mm-600mm (L) 230mm-450mm (W) 150mm-250mm (H) |

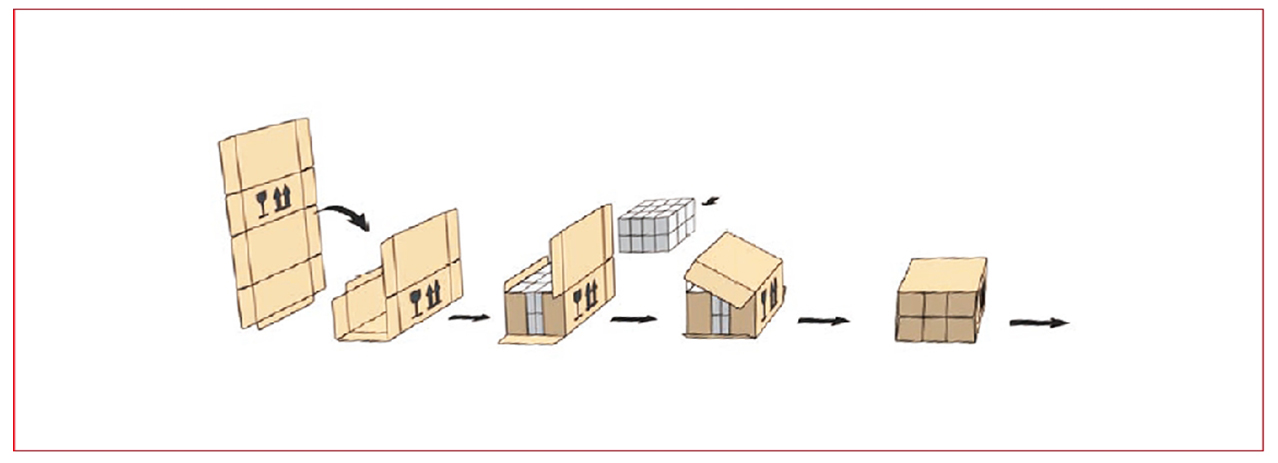

Process Flow Diagram
