Functions
The auto paper tray forming equipment is a computer-programmed automated production system characterized by high efficiency and precision. Its operational principle involves a series of processes including conveying, folding, pressing, and cutting, ultimately transforming paper or cardboard into the required paper tray products.
Features
Low hopper height
Touchscreen control
Stepless speed adjustment
Steel frame construction
Easy maintenance
Quick changeover
Applicable to: Folding and forming various complex non-standard paper trays
Technical Specs
Model | MP10 |
Design Capacity | 600 cases/h |
Actual Production Capacity | 5 caese/min. |
Case Dimensions | 200mm-580mm (L) 120mm-400mm (W) 110mm-400mm (H) |
Max. Product Dimensions | 500mm (L) 350mm (W) 350mm (H) |
Power Supply | AC380V/3P/50Hz |
Power Consumption | 4.5kW + 6kW (Robot) |

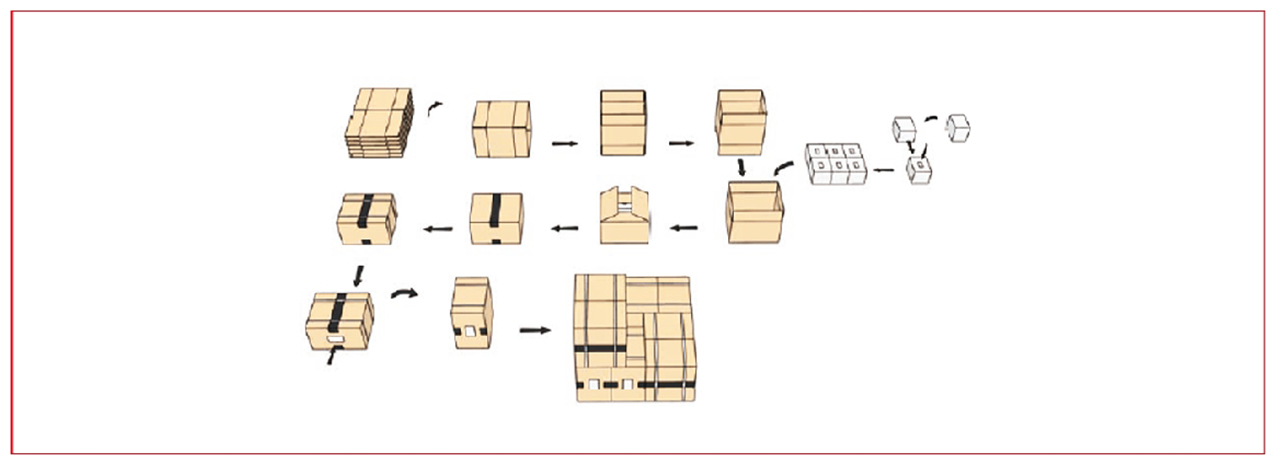

Process Flow Diagram
