Functions
This equipment integrates automatic case forming, packing, and sealing into one unit. After horizontal box forming, the cases proceed to the packing station. Products are sorted and arranged in the product alignment zone before being side-fed into the cases. The cases are then conveyed to the sealing station for final sealing.
Features
Fully servo-driven motor
Compact structure
Imported components
Easy maintenance
Stepless speed adjustment
Rapid changeover
Applicable to: Various types of horizontal corrugated cardboard case products
Technical Specs
Parameter | Value |
Model | M18 |
Loading Method | Sideload |
Loading Speed | ≤18 cases/min. |
Applicable Case Dimensions | 200mm-500mm (L) 200mm-400mm (W) 120mm-350mm (H) |

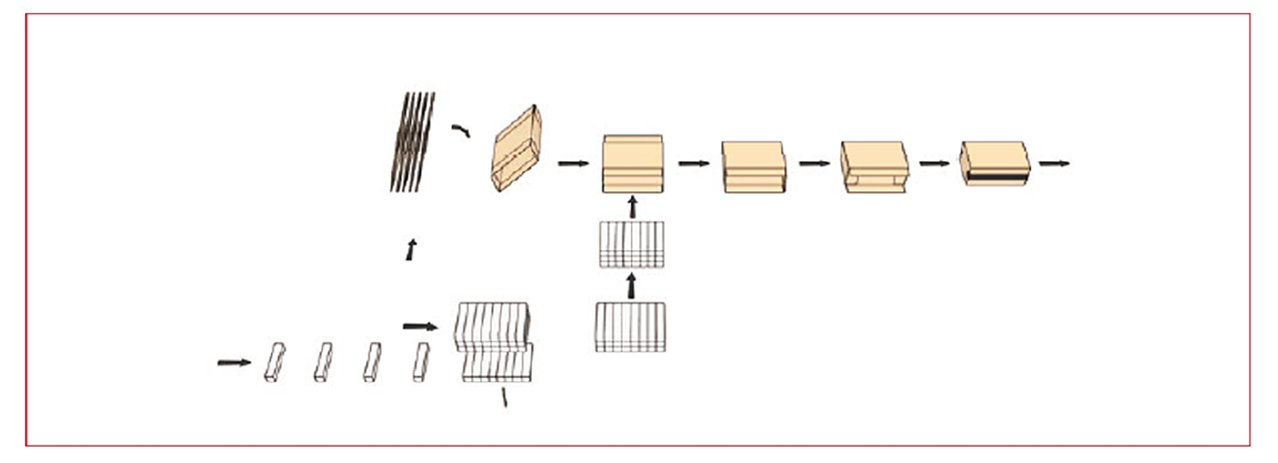

Process Flow Diagram
